Excellent sealing material for gaskets

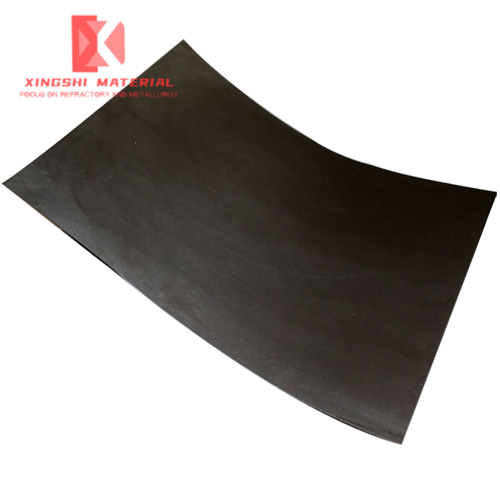

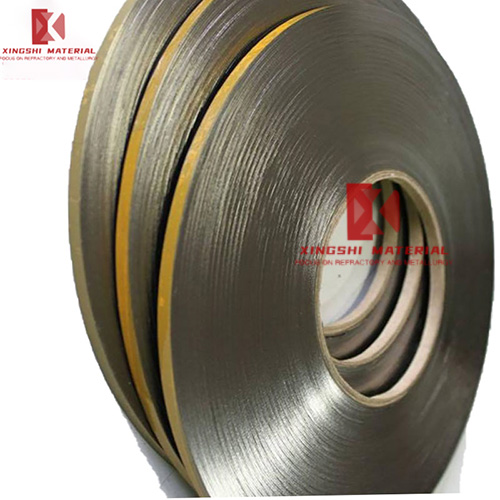

Reinforced Graphite Sheet is formed mechanically or by sticking flexible graphite sheets together with a metal plate(flat metal foil, coil, or perforated stainless steel sheet). It has good compressibility and resilience, excellent sealing property for microscopic surface irregularities and a long working life.
It is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets.

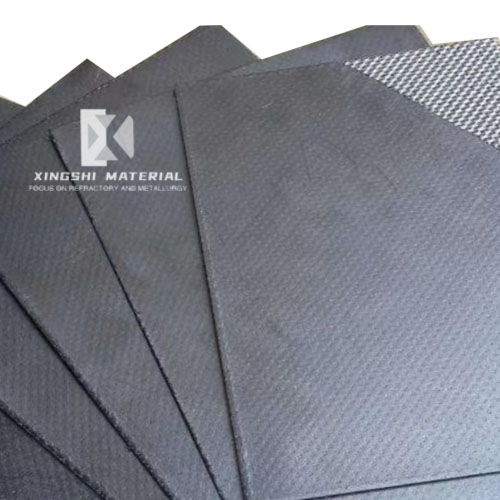

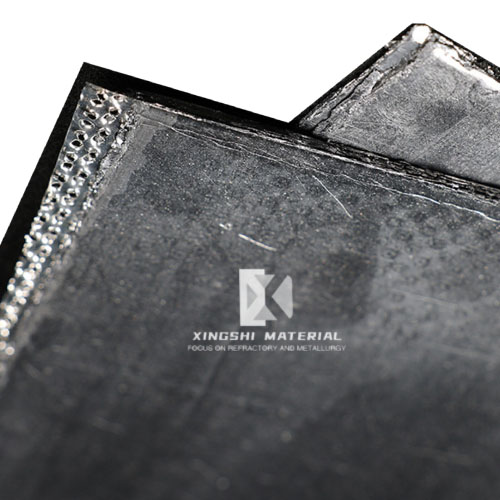

Graphite Laminate with SS316 foil Sheet
Graphite Laminate with SS316 Tang insert
Graphite Laminate with polyester Insert
Graphite Laminate with 316 SS wire Insert
Graphite Sheet with 304 steel reinforced Inserted Laminate
Products Details :
| Reinforced inserted material | Stability under compressive stress(N/mm2) | Temperature(°C) | Compressibility(%) | Recovery(%) | |
|---|---|---|---|---|---|
| In oxidizing media | In non-oxidizing media | ||||
| Tanged carbon steel sheet | ≥48 | -10 - 450 | -10 - 550 | 30 - 35 | 15 - 20 |
| SS304, SS316 Tanged stainless steel sheet | ≥48 | -240 - 450 | -20 - 600 | 30 - 40 | 15 - 30 |
| SS304, SS316 Flat sheet | ≥45 | -240 - 450 | -20 - 600 | 40 - 50 | 10 - 15 |
| SS304 wire Mesh | ≥40 | -240 - 450 | -20 - 600 | 30 - 35 | 15 - 20 |
| Reinforced inserted material | Gas permeability(cm3/min) Thickness 1.5mm | Sealability( Thickness 1.5mm) | Sealing constants | ||
|---|---|---|---|---|---|
| N2 m1/hr | Bumming oil A m1/hr | M*factor | stress psi“Y” | ||
| Tanged carbon steel sheet | ≤0.8 | 30 | <0.5 | 3.0 | 9000 |
| SS304, SS316 Tanged | ≤0.8 | 60 | <0.5 | 2.5 | 4000 |
SS304, SS316 Flat sheet | ≤0.4 | 35 | <0.5 | 2.0 | 900 |
| SS304 Mesh | ≤1.0 | 70 | <0.5 | 3.0 | 5000 |
| Code | Product |
|---|---|
| 0001 | PURE GRAPHITE GASKET WITH CS TANGE INSERT (WITHOUT EYELET) |
| 0002 | PURE GRAPHITE GASKET WITH SUS304 TANGED INSERT (WITHOUT EYELET) |
| 0003 | PURE GRAPHITE GASKET WITH SUS316 TANGED INSERT (WITHOUT EYELET) |
| 0004 | PURE GRAPHITE GASKET WITH SUS304 FOIL INSERT (WITHOUT EYELET) |
| 0005 | PURE GRAPHITE GASKET WITH SUS316 FOIL INSERT (WITHOUT EYELET) |
| 0006 | PURE GRAPHITE GASKET WITH SUS316 FOIL INSERT (WITHOUT EYELET) |
| 0007 | PURE GRAPHITE GASKET WITH SUS304 TANGED INSERT (WITH INNER EYELET) |
| 0008 | PURE GRAPHITE GASKET WITH SUS316 TANGED INSERT (WITH INNER EYELET) |
| 0009 | PURE GRAPHITE GASKET WITH SUS304 FOIL INSERT (WITH INNER EYELET) |
| 0010 | PURE GRAPHITE GASKET WITH SUS316 FOIL INSERT (WITH INNER EYELET) |
| 0011 | PURE GRAPHITE GASKET WITH CS TANGE INSERT (WITH INNER & OUTER EYELET) |
| 0012 | PURE GRAPHITE GASKET WITH SUS304 TANGED INSERT (WITH INNER & OUTER EYELET) |
| 0013 | PURE GRAPHITE GASKET WITH SUS316 TANGED INSERT (WITH INNER & OUTER EYELET) |
| 0014 | PURE GRAPHITE GASKET WITH SUS304 FOIL INSERT (WITH INNER & OUTER EYELET) |
| 0015 | PURE GRAPHITE GASKET WITH SUS316 FOIL INSERT (WITH INNER & OUTER EYELET) |
